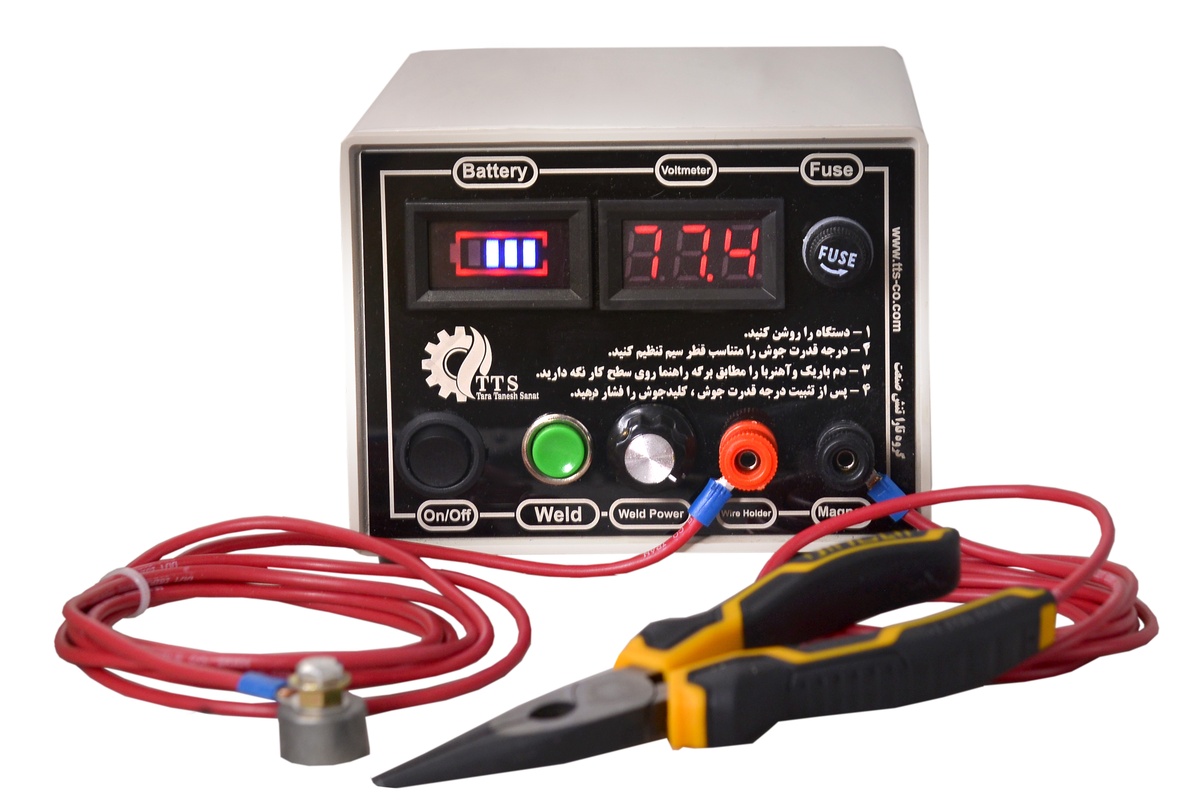

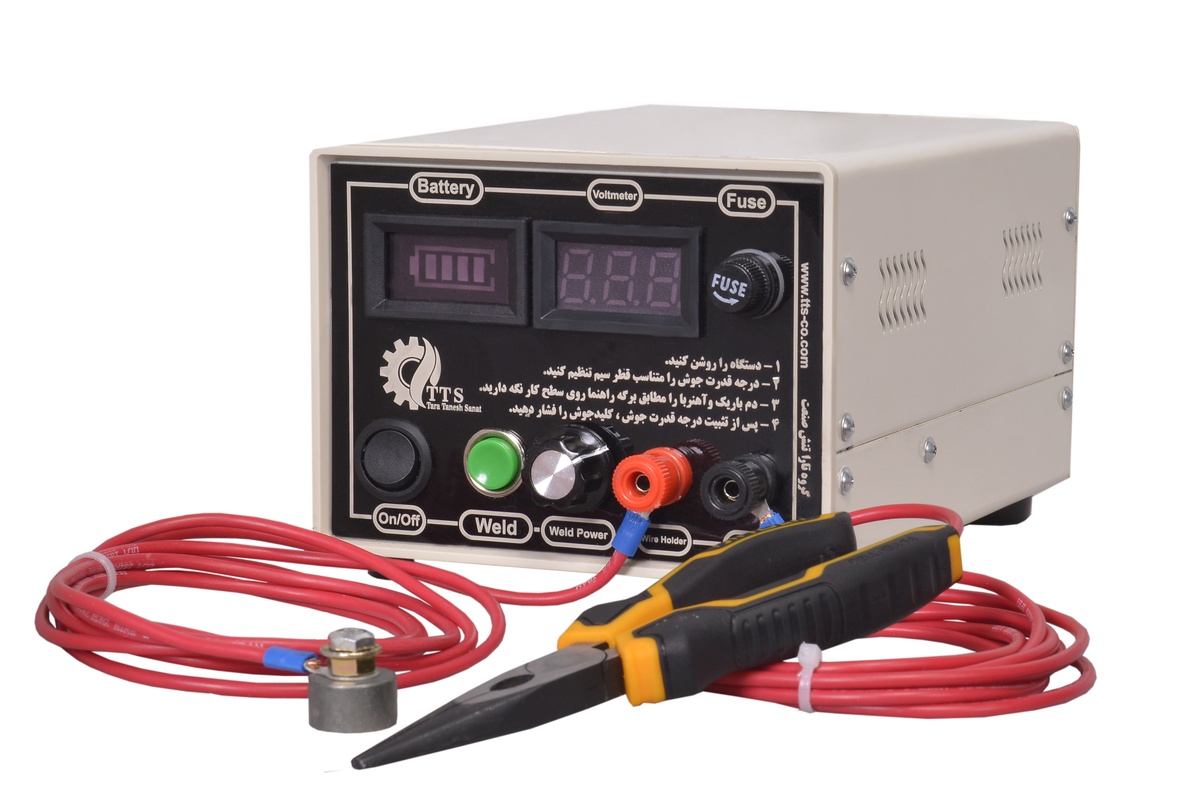

The thermocouple attachment unit enables the operator to attach the thermocouple and fine wires to the test piece for precision temperature measurements. The unit is very safe to operate as the maximum voltage between the earth return magnet and the application pliers is at safe volts.

A compact, and lightweight portable unit, which is powered by 12V(3 cell), AA lithium batteries. The unit uses the capacitance discharge method for the attachment of a thermocouple wire (single & couple) to a workpiece, to allow temperature recording and control instruments to accurately read the temperature of the workpiece being heat treated.  Capacitor can be charged to different voltages to get different values of weld current

Specifications for Model No. TTS-TW100 :

1.  3 cell lithume batteries, totally 12 V

2.  0.2 ~ 2 mm thermocouple welding ability with Weld Power Gauge

3.  Approximately 250 welds from new batteries

4.  Weld Cycle speed at 4 weld/Min

5.  Input Voltage at 220 ~ 240V Ac

6.  Max operating voltage  at 100 V

7.  Suitable For Thermocouple Type K/J/E/T/N/R/S/B

8.  Monitoring LED

9.  Suitable Use For Manufacturer / Workshop / Laboratory / Engineering Dept

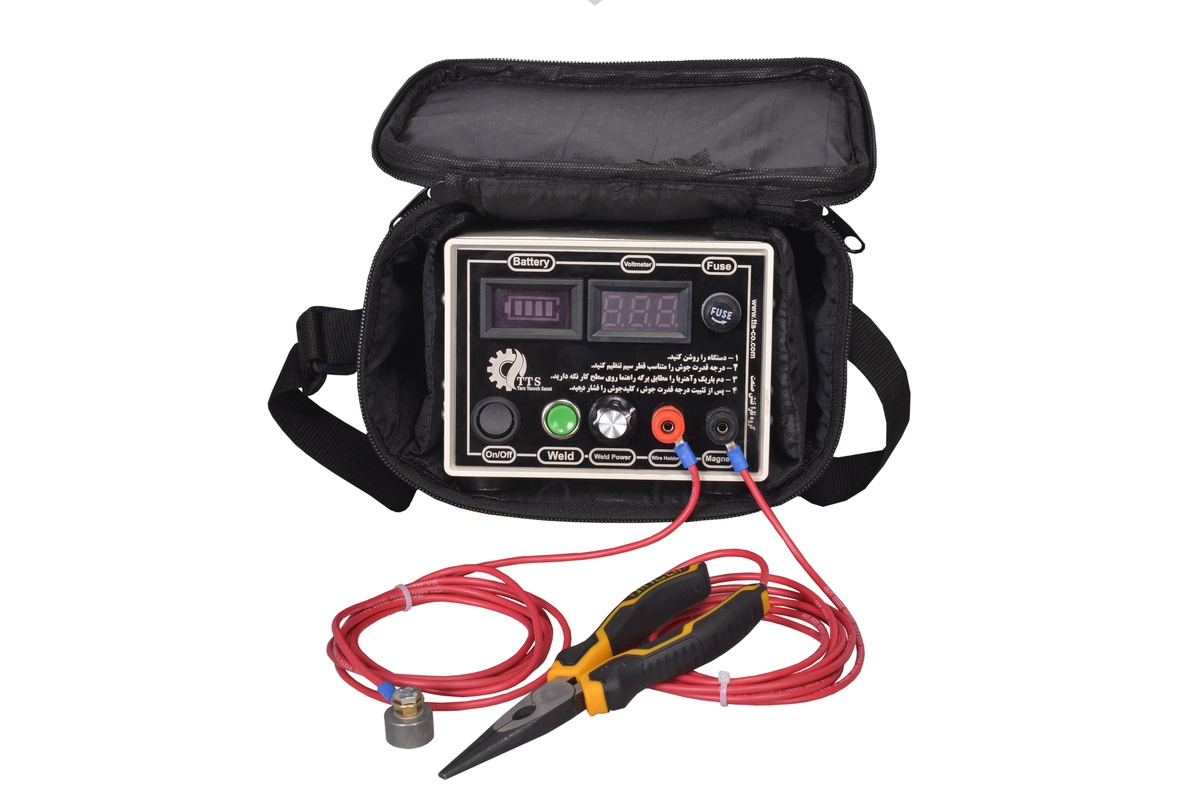

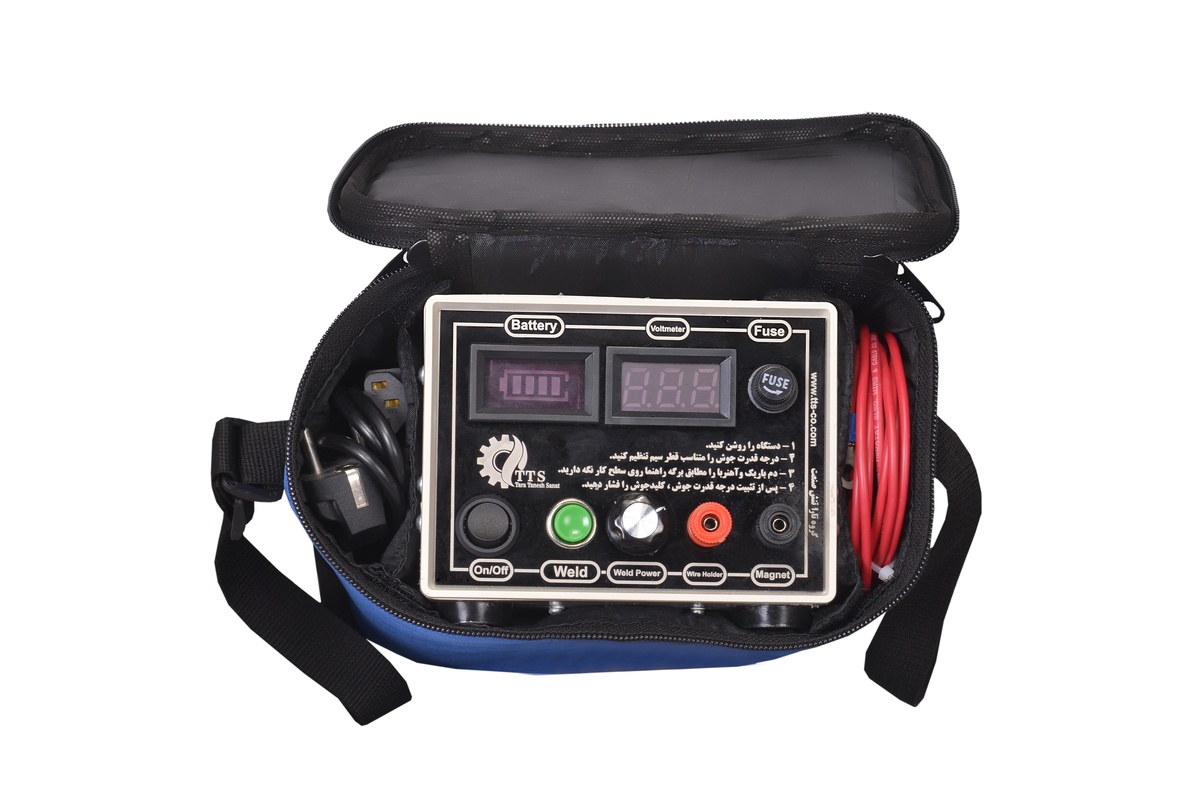

¨ Included accessories:

1.  Lightweight padded case with shoulder strap

2.  Application nose pliers with 2 Mtr cable

3.  Application magnet with 2 Mtr cable

4.  Supply plug for recharging the battery
